Model Name	Circuit & Leakage Tester
Overview	Equipment for inspecting Battery Cable connection and seal omission in vehicles under development
Features	Size : 480(W) X 220(H) X 500(D) Weight : 10 Kg Input power source : A.C 110 ~ 220V Power Consumption : 500W (Max) Test Capacity : 16~256 Point Test Voltage Range : D.C 5V Cycle Time : 1 Sec ( Max ) S/W Language : C++& Visual basic Monitor : 19” Color LCD Monitor OS : Windows 7 or higher Program : HCT Software I/O PORT : LAN, 4 USB, 2 Serial , Mouse Key Board, Barcode & Printer

Model Name

Circuit & Leakage Tester

Overview

Equipment for inspecting Battery Cable connection and seal omission in vehicles under development

Features

Size : 480(W) X 220(H) X 500(D)

Weight : 10 Kg

Input power source : A.C 110 ~ 220V

Power Consumption : 500W (Max)

Test Capacity : 16~256 Point

Test Voltage Range : D.C 5V

Cycle Time : 1 Sec ( Max )

S/W Language : C++& Visual basic

Monitor : 19” Color LCD Monitor

OS : Windows 7 or higher

Program : HCT Software

I/O PORT : LAN, 4 USB, 2 Serial , Mouse

Key Board, Barcode & Printer

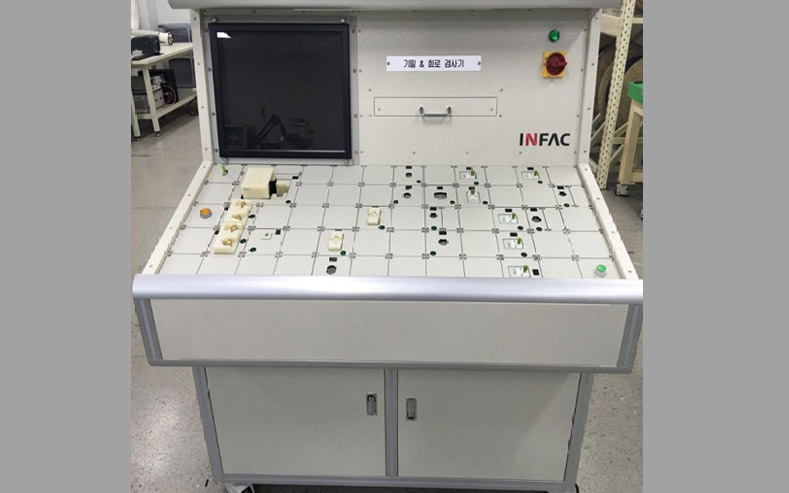

Circuit & Leakage Tester
